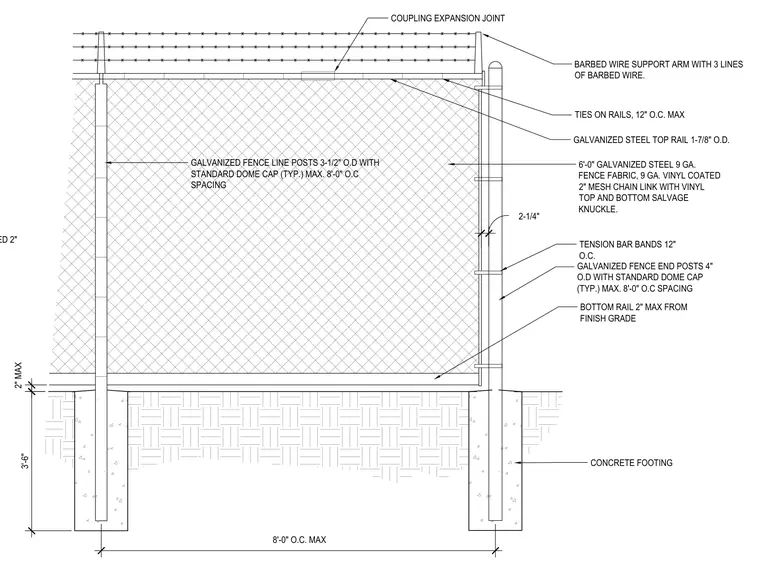

A galvanized chain link fence assembly is anchored into concrete footings measuring three feet six inches deep with a maximum eight-foot-zero-inch on-center spacing. The system features 3-1/2-inch outside diameter galvanized fence line posts and 4-inch outside diameter end posts fitted with standard dome caps and a barbed wire support arm carrying three lines of barbed wire. A 1-7/8-inch outside diameter galvanized steel top rail and a bottom rail positioned a maximum of 2 inches from the finish grade frame the 6-foot-tall, 9-gauge vinyl-coated galvanized steel fence fabric with 2-inch mesh. Tension bar bands spaced at 12 inches on center secure the fabric to the end posts, while wire ties spaced at 12 inches on center fasten the fabric to the top rail, and a coupling expansion joint accommodates movement along the top rail run.
GALVANIZED FENCE LINE POSTS 3-1/2" O.D WITH STANDARD DOME CAP (TYP.) MAX. 8'-0" O.C SPACING 3'-6" 8'-0" O.C. MAX 2-1/4" GALVANIZED STEEL 9 GA. FENCE FABRIC, 9 GA. VINYL COATED 2" CONCRETE FOOTING BOTTOM RAIL 2" MAX FROM FINISH GRADE TENSION BAR BANDS 12" O.C. 6'-0" GALVANIZED STEEL 9 GA. FENCE FABRIC, 9 GA. VINYL COATED 2" MESH CHAIN LINK WITH VINYL TOP AND BOTTOM SALVAGE KNUCKLE. GALVANIZED FENCE END POSTS 4" O.D WITH STANDARD DOME CAP (TYP.) MAX. 8'-0" O.C SPACING GALVANIZED STEEL TOP RAIL 1-7/8" O.D. TIES ON RAILS, 12" O.C. MAX COUPLING EXPANSION JOINT 2" MAX BARBED WIRE SUPPORT ARM WITH 3 LINES OF BARBED WIRE.
