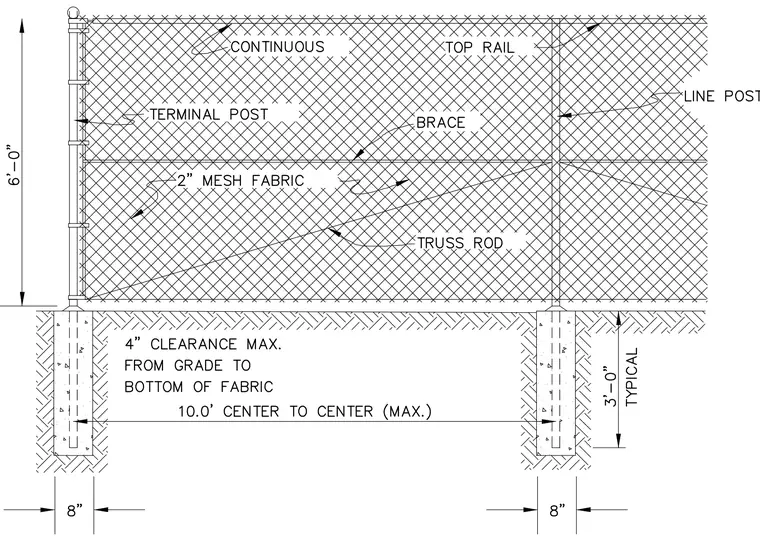

A continuous top rail and intermediate brace span between terminal posts and line posts, supporting a 2-inch mesh fabric. The fence stands 6 feet high with a maximum 4-inch clearance from grade to the bottom of the fabric. Posts are anchored into concrete footings measuring 8 inches in width and 3 feet deep typical, spaced at a maximum of 10 feet center to center. A diagonal truss rod provides bracing between posts.
