Round stainless steel tubing forms a surface mounted bike rack anchored to a concrete substrate. Surface mount bolts specified by the manufacturer secure the base plates to the concrete. Installation is completed in accordance with the manufacturer's recommendations.

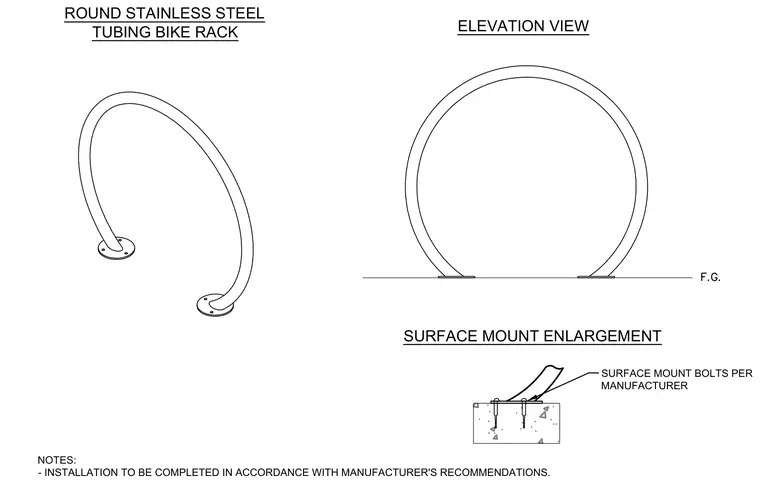

SURFACE MOUNT BOLTS PER MANUFACTURER ROUND STAINLESS STEEL TUBING BIKE RACK ELEVATION VIEW SURFACE MOUNT ENLARGEMENT NOTES: - INSTALLATION TO BE COMPLETED IN ACCORDANCE WITH MANUFACTURER'S RECOMMENDATIONS.
