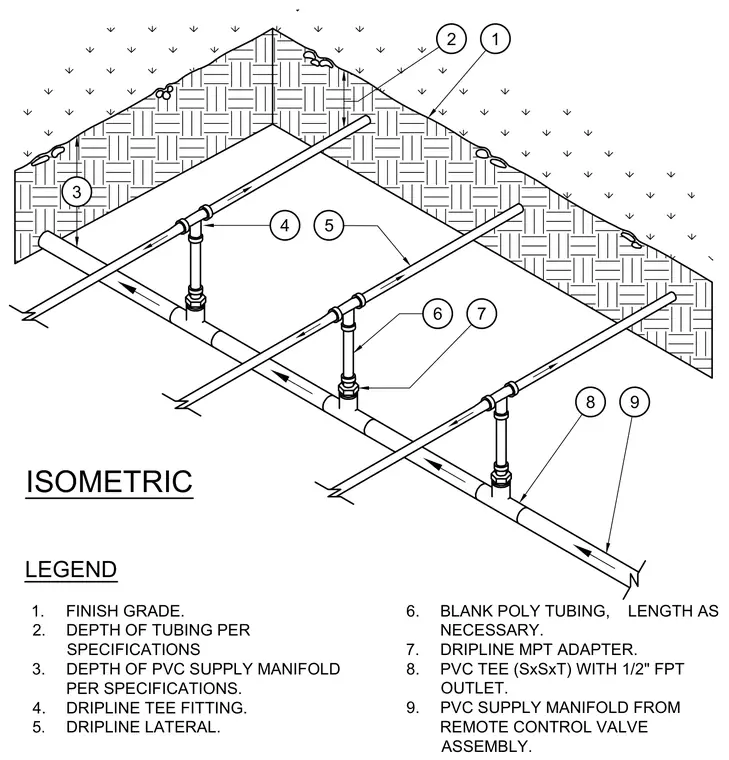

A PVC supply manifold from a remote control valve assembly routes underground below finish grade at a depth specified per project requirements. A PVC tee with a half-inch female pipe thread outlet connects the supply line to a dripline male pipe thread adapter. Blank poly tubing of necessary length extends up to a dripline tee fitting, which feeds the dripline laterals at a depth per specifications.
ISOMETRIC 3 2 1 4 5 6 7 8 9 1. FINISH GRADE. 2. DEPTH OF TUBING PER SPECIFICATIONS 3. DEPTH OF PVC SUPPLY MANIFOLD PER SPECIFICATIONS. 4. DRIPLINE TEE FITTING. 5. DRIPLINE LATERAL. 6. BLANK POLY TUBING, LENGTH AS NECESSARY. 7. DRIPLINE MPT ADAPTER. 8. PVC TEE (SxSxT) WITH 1/2" FPT OUTLET. 9. PVC SUPPLY MANIFOLD FROM REMOTE CONTROL VALVE ASSEMBLY. LEGEND
