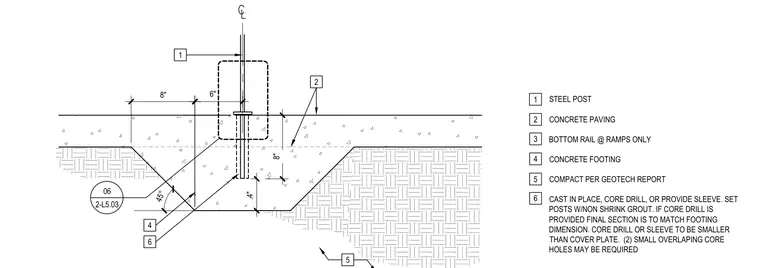

An eight-inch steel post extends through concrete paving into a concrete footing below. The post is set in non-shrink grout within a cast-in-place, core-drilled, or sleeved opening. The subgrade beneath the footing is compacted per the geotechnical report. Overlapping core holes may be used if needed to accommodate the cover plate.
1 2 4 5 1 2 3 4 5 06 2-L5.03 6 6 8" STEEL POST CONCRETE PAVING BOTTOM RAIL @ RAMPS ONLY CONCRETE FOOTING COMPACT PER GEOTECH REPORT CAST IN PLACE, CORE DRILL, OR PROVIDE SLEEVE. SET POSTS W/NON SHRINK GROUT. IF CORE DRILL IS PROVIDED FINAL SECTION IS TO MATCH FOOTING DIMENSION. CORE DRILL OR SLEEVE TO BE SMALLER THAN COVER PLATE. (2) SMALL OVERLAPING CORE HOLES MAY BE REQUIRED 45° 4" 8" 6"
