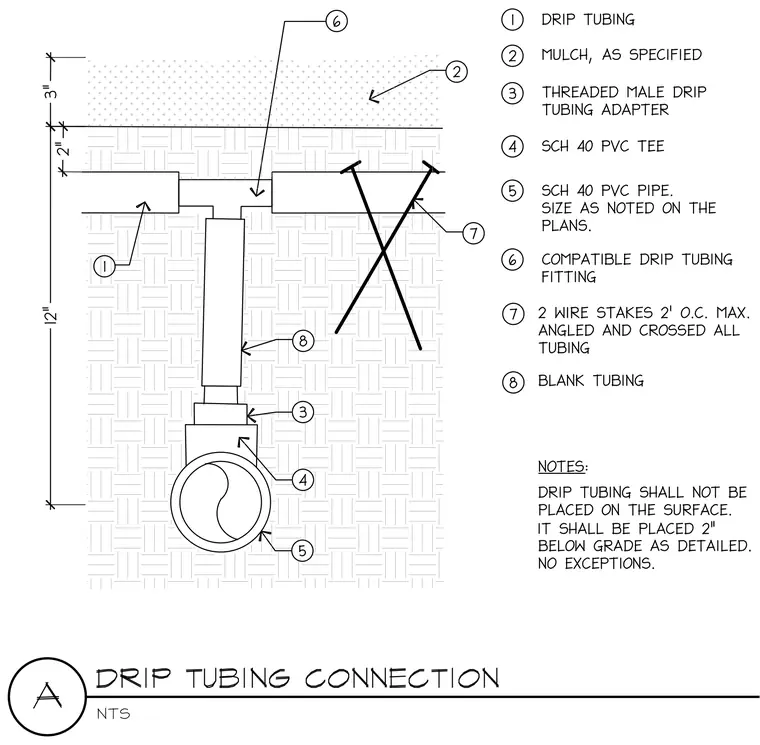

A drip tubing connection to a main schedule 40 PVC pipe sized per plans. A threaded male drip tubing adapter connects the PVC tee to blank tubing via a compatible drip tubing fitting. Drip tubing runs two inches below grade with three inches of mulch specified above. Two wire stakes placed at a maximum of two feet on center are angled and crossed over the tubing for secure anchoring.
