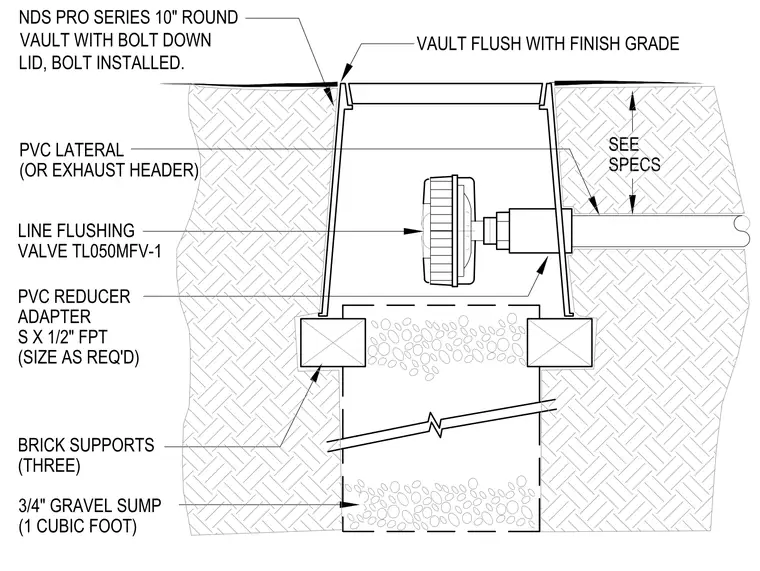

An NDS Pro Series ten-inch round plastic valve vault is installed flush with the finish grade atop three brick supports resting on a one-cubic-foot three-quarter-inch gravel sump. A line flushing valve model TL050MFV-1 connects to the PVC lateral or exhaust header via a PVC reducer adapter measuring slip by one-half-inch female pipe thread sized as required. The vault is secured with a bolt-down lid using installed bolts.
BRICK SUPPORTS (THREE) SEE SPECS LINE FLUSHING VALVE TL050MFV-1 PVC REDUCER ADAPTER S X 1/2" FPT 3/4" GRAVEL SUMP (1 CUBIC FOOT) (SIZE AS REQ'D) VAULT FLUSH WITH FINISH GRADE PVC LATERAL (OR EXHAUST HEADER) NDS PRO SERIES 10" ROUND VAULT WITH BOLT DOWN LID, BOLT INSTALLED.
