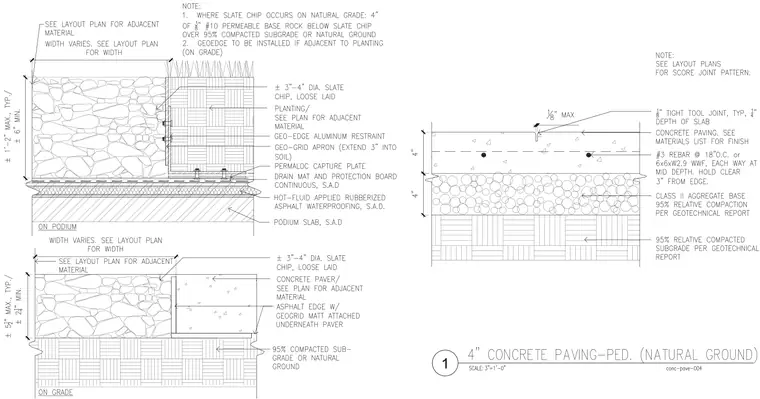

Rip rap paving and concrete paving assemblies over podium slabs and natural grade. The top-left detail shows three to four inch diameter loose laid slate chips over a permaloc capture plate, geo-edge aluminum restraint, drain mat and protection board continuous, and hot-fluid applied rubberized asphalt waterproofing over a podium slab. The bottom-left detail shows slate chip paving adjacent to a concrete paver on grade over a ninety-five percent compacted subgrade. The right detail shows a four-inch concrete paving slab with number three rebar at eighteen inches on center or six by six by W2.9 welded wire fabric over a Class II aggregate base and compacted subgrade, featuring a one-eighth inch max tight tool joint.
