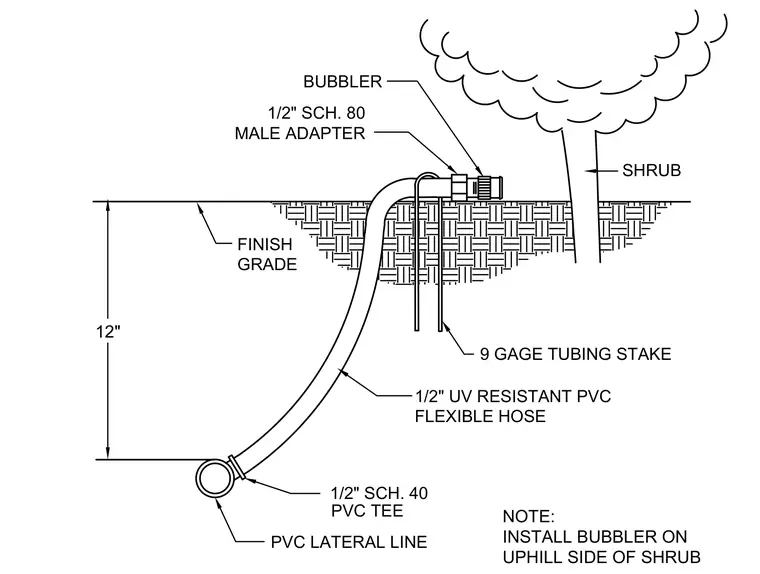

A shrub bubbler connects to a polyvinyl chloride lateral line using a half-inch schedule forty PVC tee and a half-inch ultraviolet resistant PVC flexible hose. A half-inch schedule eighty male adapter connects the flexible hose to the bubbler head. A nine-gauge tubing stake secures the hose near finish grade. The bubbler is positioned on the uphill side of the shrub.
BUBBLER PVC LATERAL LINE PVC TEE 1/2" SCH. 40 1/2" SCH. 80 MALE ADAPTER FINISH GRADE 9 GAGE TUBING STAKE 1/2" UV RESISTANT PVC FLEXIBLE HOSE SHRUB NOTE: INSTALL BUBBLER ON UPHILL SIDE OF SHRUB 12"
