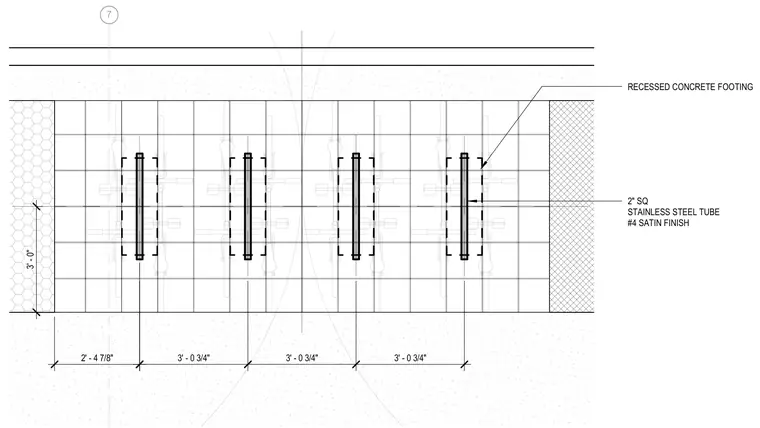

Bicycle racks anchor into a recessed concrete footing below paver surfaces. Each bike rack consists of a two-inch square stainless steel tube with a number four satin finish spaced along a continuous structural alignment. The installation features a series of repeating bays spaced at three feet and three-quarters of an inch on center. The pavers surround the recessed concrete footing which provides the structural support for the bicycle parking units.
7 3' - 0 3/4" 3' - 0 3/4" 3' - 0 3/4" 3' - 0" RECESSED CONCRETE FOOTING 2' - 4 7/8" 2" SQ STAINLESS STEEL TUBE #4 SATIN FINISH
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
