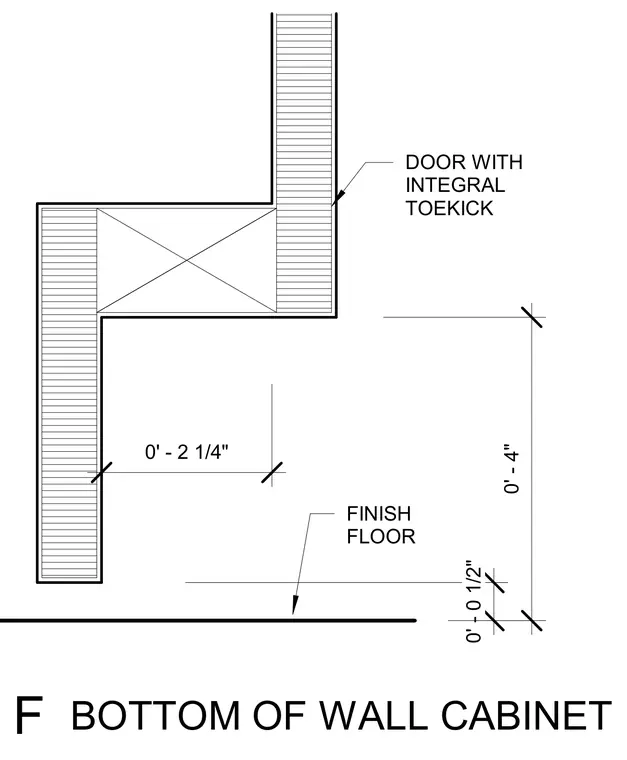

Cabinet base detail showing the lower section of a wall cabinet with an integral toe kick above the finish floor. The assembly sits four inches above the finish floor with a two and a quarter inch offset and a half inch base clearance.
0' - 2 1/4" 0' - 0 1/2" FINISH FLOOR DOOR WITH INTEGRAL TOEKICK 0' - 4" F BOTTOM OF WALL CABINET
