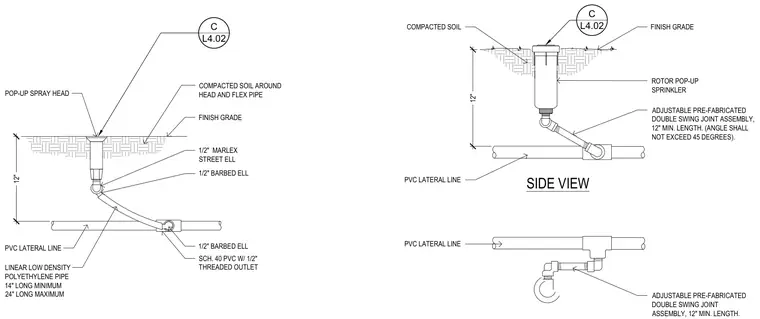

A pop-up spray head and rotor pop-up sprinkler connect to a Schedule 40 PVC lateral line. The sprinkler connects via an adjustable pre-fabricated double swing joint assembly with a minimum length of twelve inches, utilizing half-inch Marlex street elbows and barbed elbows. A linear low-density polyethylene pipe connects between fourteen and twenty-four inches in length. The assembly is surrounded by compacted soil beneath the finish grade, maintaining a maximum swing joint angle of forty-five degrees.
PVC LATERAL LINE ADJUSTABLE PRE-FABRICATED DOUBLE SWING JOINT ASSEMBLY, 12" MIN. LENGTH. COMPACTED SOIL FINISH GRADE ROTOR POP-UP SPRINKLER ADJUSTABLE PRE-FABRICATED DOUBLE SWING JOINT ASSEMBLY, 12" MIN. LENGTH. (ANGLE SHALL NOT EXCEED 45 DEGREES). SIDE VIEW 12" PVC LATERAL LINE FINISH GRADE COMPACTED SOIL AROUND HEAD AND FLEX PIPE POP-UP SPRAY HEAD 1/2" MARLEX STREET ELL 1/2" BARBED ELL 12" 1/2" BARBED ELL LINEAR LOW DENSITY POLYETHYLENE PIPE 14" LONG MINIMUM 24" LONG MAXIMUM PVC LATERAL LINE SCH. 40 PVC W/ 1/2" THREADED OUTLET C L4.02 C L4.02
