Landscape · L-V9AVV

Ball Valve in Valve Box

Materials

Connections

About this detail

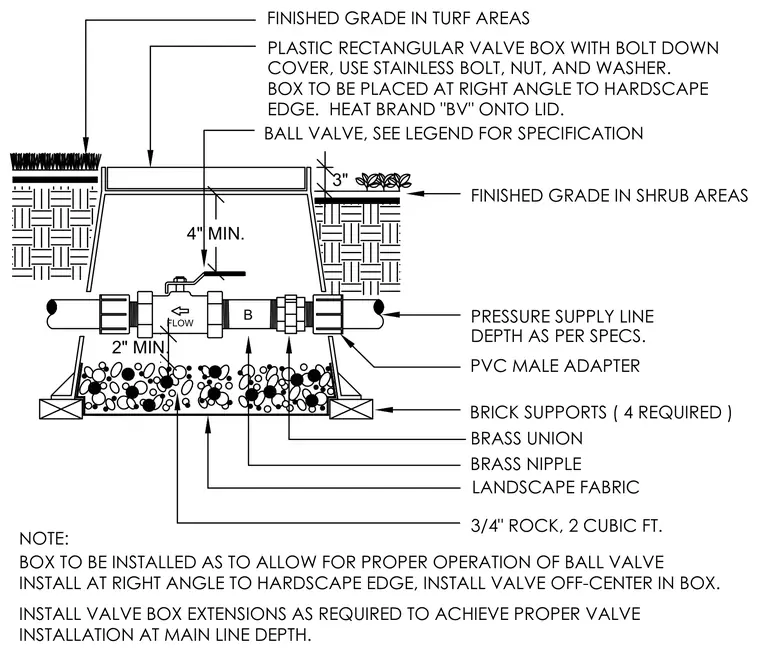

A pressure supply line transitions to a ball valve via brass nipples, brass unions, and PVC male adapters, positioned off-center inside a plastic rectangular valve box. The valve box is placed at a right angle to the hardscape edge with the brand letters 'BV' heat branded onto the lid, which is secured using stainless steel bolts, nuts, and washers. The valve assembly rests on four brick supports over landscape fabric and a two-cubic-foot bed of three-quarter-inch rock. The entire assembly is installed at main line depth with finished grade established for surrounding turf and shrub areas.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
