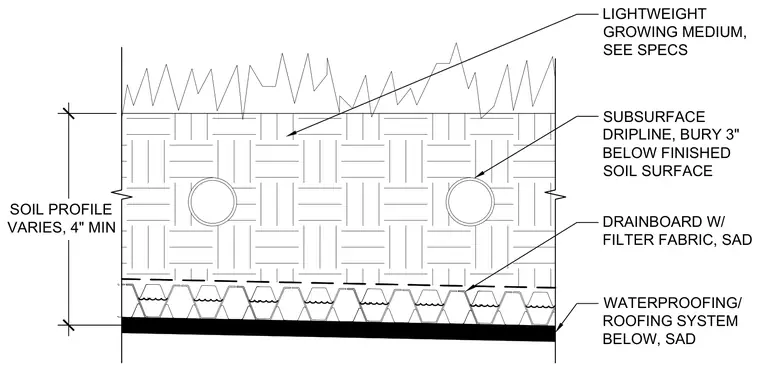

This green roof assembly sits atop a structural waterproofing and roofing system with a soil profile varying to a four-inch minimum. A drainboard with integrated filter fabric overlays the waterproofing membrane to manage sub-surface water. A four-inch minimum subsurface dripline is buried three inches below the finished soil surface. Lightweight growing medium fills the upper portion of the profile per project specifications.
LIGHTWEIGHT GROWING MEDIUM, SEE SPECS SOIL PROFILE VARIES, 4" MIN SUBSURFACE DRIPLINE, BURY 3" BELOW FINISHED SOIL SURFACE DRAINBOARD W/ FILTER FABRIC, SAD WATERPROOFING/ ROOFING SYSTEM BELOW, SAD
