A three-foot-six-inch high guardrail assembly mounts to cast-in-place concrete paving with a block-out provided for the post base. The vertical supports consist of three-by-one-inch type 304 stainless steel guardrail posts featuring a directional brushed finish. Intermediate rails utilize one-quarter-inch diameter type 316 stainless steel tension cables with stainless steel ball end fittings, tensioned to fifty pounds each. A two-by-six-inch Ipe wood top rail parallels the ramp slope and attaches to the top of the stainless steel post.

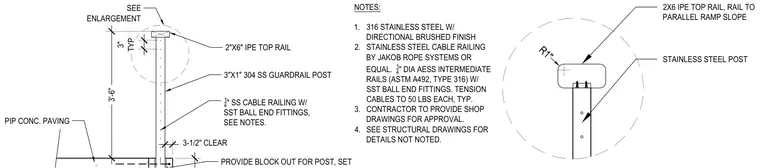

3'-6" PIP CONC. PAVING 3"X1" 304 SS GUARDRAIL POST 1 4 " SS CABLE RAILING W/ SST BALL END FITTINGS, SEE NOTES. NOTES: 1. 316 STAINLESS STEEL W/ DIRECTIONAL BRUSHED FINISH 2. STAINLESS STEEL CABLE RAILING BY JAKOB ROPE SYSTEMS OR EQUAL. 1 4 " DIA AESS INTERMEDIATE RAILS (ASTM A492, TYPE 316) W/ SST BALL END FITTINGS. TENSION CABLES TO 50 LBS EACH, TYP. 3. CONTRACTOR TO PROVIDE SHOP DRAWINGS FOR APPROVAL. 4. SEE STRUCTURAL DRAWINGS FOR DETAILS NOT NOTED. 3" TYP PROVIDE BLOCK OUT FOR POST, SET 3-1/2" CLEAR SEE ENLARGEMENT 2"X6" IPE TOP RAIL 2X6 IPE TOP RAIL, RAIL TO PARALLEL RAMP SLOPE R1" STAINLESS STEEL POST
