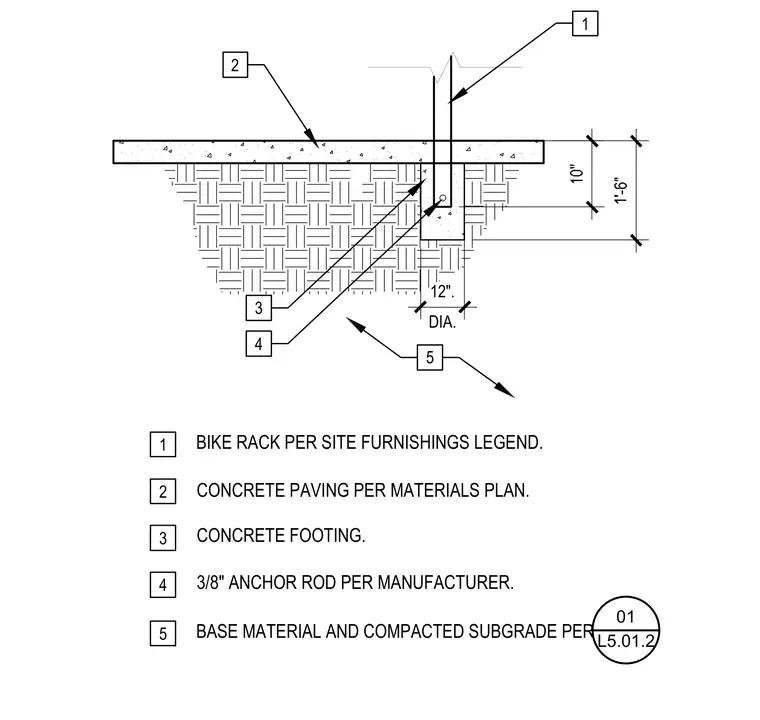

A bike rack is anchored into a concrete paving slab and a twelve-inch diameter by one-foot-six-inch deep concrete footing. Three-eighth-inch anchor rods secure the bike rack per the manufacturer recommendations. The assembly sits atop base material and a compacted subgrade sized per the materials plan.
12". DIA. 1'-6" CONCRETE FOOTING. BIKE RACK PER SITE FURNISHINGS LEGEND. 5 3 1 BASE MATERIAL AND COMPACTED SUBGRADE PER CONCRETE PAVING PER MATERIALS PLAN. 2 2 3 4 3/8" ANCHOR ROD PER MANUFACTURER. 4 1 10" 01 L5.01.2 5
