Boulder Seating and Bike Rack Site Details

Materials

Concrete Steel

Elements

Columns Beams Foundations / Footings Site / Paving Anchors / Embeds

Connections

Embed Plate

About this detail

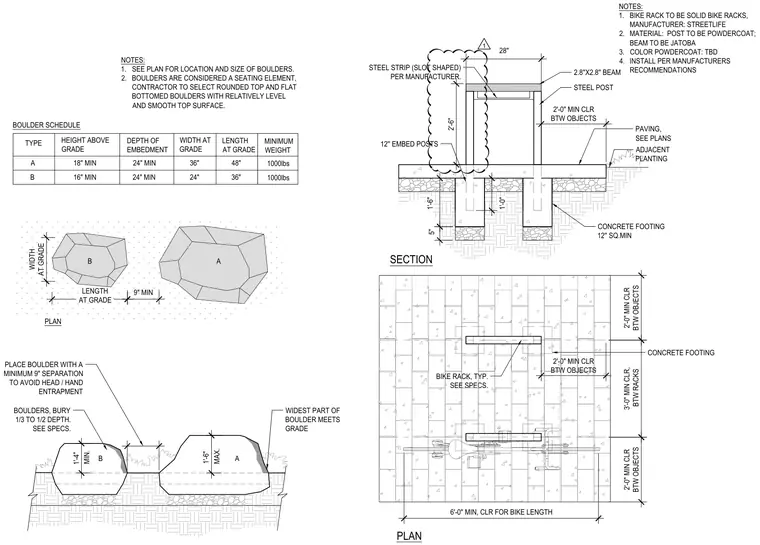

Landscape boulders are installed with a minimum nine-inch separation to avoid head and hand entrapment, buried one-third to one-half of their depth into grade with a flat-bottomed and smooth top surface. A boulder schedule outlines type A and B sizing, specifying heights above grade of sixteen to eighteen inches, twenty-four-inch embedment depths, and minimum weights of one thousand pounds. The bike rack consists of powdercoated steel posts and jatoba wood beams measuring 2.8 inches by 2.8 inches, set into twelve-inch embedded concrete footings. Clearances are specified with a minimum two-foot clearance between objects, three-foot clearance between racks, and six-foot clearance for bike length.
