Landscape · L-V58J6

Drip Flush Indicator Head

Elements

Beams Site / Paving Connections / Plates

About this detail

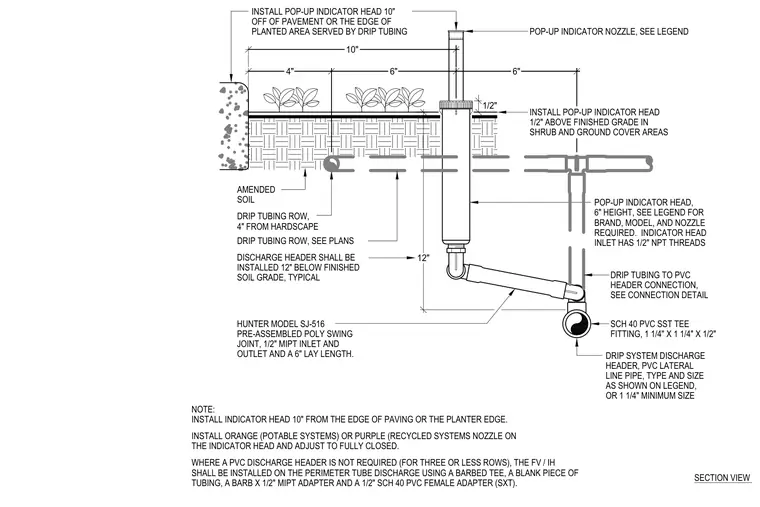

A pop-up indicator head is installed in shrub and ground cover areas, positioned ten inches off the edge of pavement or the planter edge. The pop-up indicator head features a half-inch National Pipe Thread inlet and connects to a Hunter model SJ-516 pre-assembled poly swing joint with a six-inch lay length. The swing joint ties into a Schedule 40 PVC stainless steel tee fitting and a PVC discharge header installed twelve inches below finished soil grade. Drip tubing rows are placed four inches from hardscape or per plans. Orange nozzles are specified for potable systems and purple for recycled systems.
