This cast-in-place slide footing rests on subgrade compaction per geotech requirements with a minimum daylight distance of five feet. The concrete footing is reinforced with number four transverse ties at twelve inches on center and number four longitudinal reinforcement at twelve inches on center on each side with standard ninety-degree bends at each end. A slide support is core-drilled and set with non-shrink grout. Applied waterproofing is wrapped at each support typically.

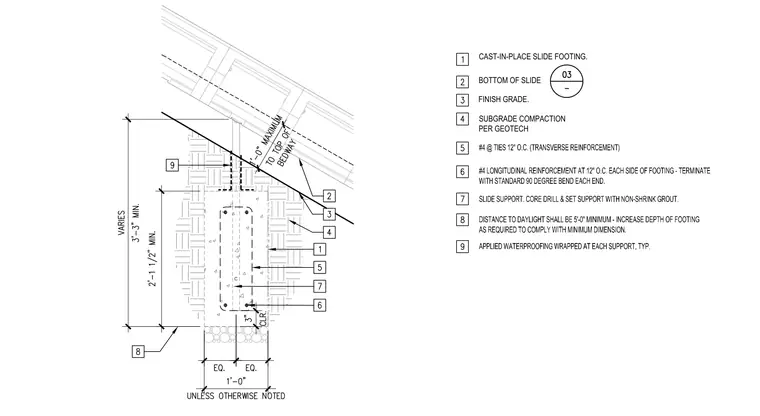

SUBGRADE COMPACTION PER GEOTECH CAST-IN-PLACE SLIDE FOOTING. BOTTOM OF SLIDE FINISH GRADE. #4 @ TIES 12" O.C. (TRANSVERSE REINFORCEMENT) #4 LONGITUDINAL REINFORCEMENT AT 12" O.C. EACH SIDE OF FOOTING - TERMINATE SLIDE SUPPORT. CORE DRILL & SET SUPPORT WITH NON-SHRINK GROUT. WITH STANDARD 90 DEGREE BEND EACH END. DISTANCE TO DAYLIGHT SHALL BE 5'-0" MINIMUM - INCREASE DEPTH OF FOOTING AS REQUIRED TO COMPLY WITH MINIMUM DIMENSION. APPLIED WATERPROOFING WRAPPED AT EACH SUPPORT, TYP.
