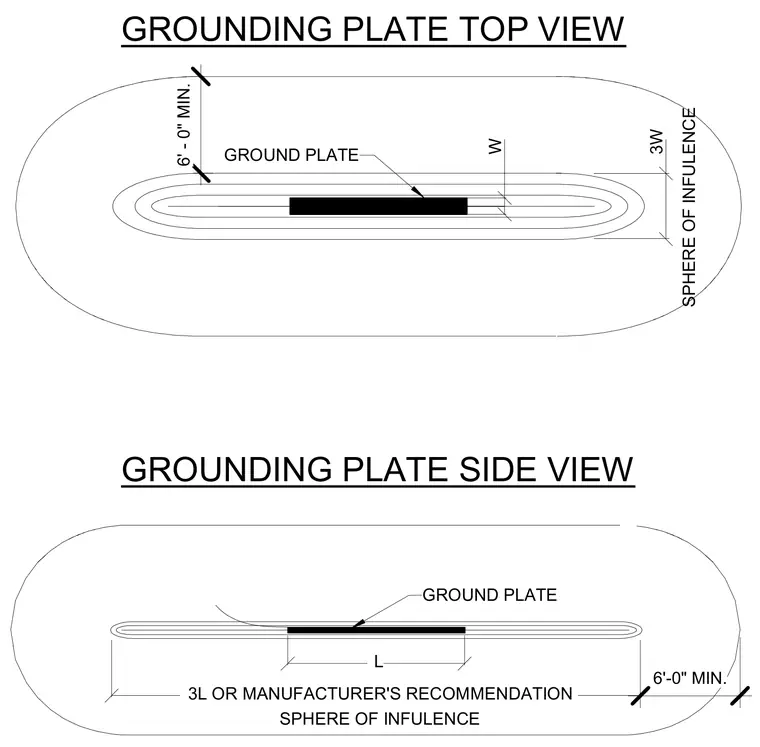

The grounding plate assembly details the spatial requirements and dimensions for buried electrical grounding. The installation features a ground plate with dimensions length L and width W, surrounded by a designated sphere of influence measuring three times the length or per the manufacturer's recommendation. Minimum clearance distances of six feet are maintained around the perimeter of the grounding plate.
GROUND PLATE GROUND PLATE L 3L OR MANUFACTURER'S RECOMMENDATION W 3W SPHERE OF INFULENCE SPHERE OF INFULENCE GROUNDING PLATE TOP VIEW 6' - 0" MIN. GROUNDING PLATE SIDE VIEW 6'-0" MIN.
