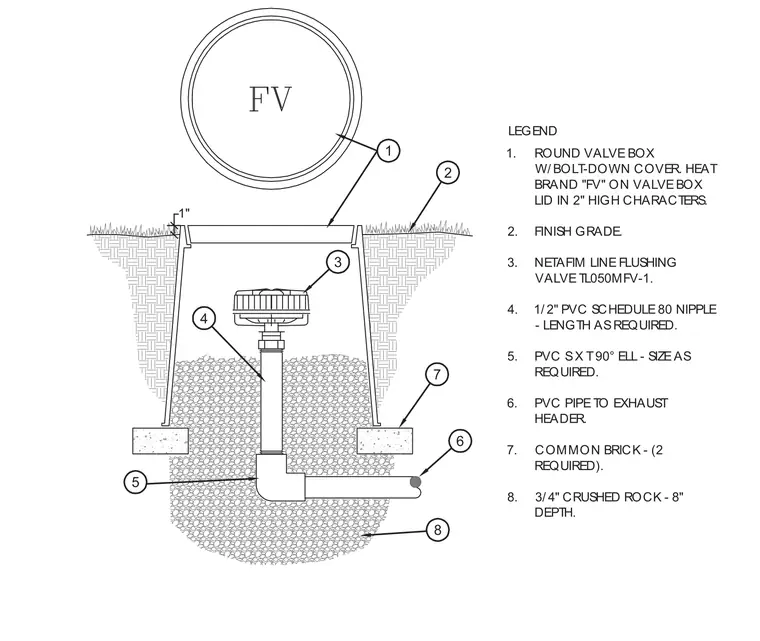

An irrigation line flushing valve assembly is housed within a round valve box featuring a bolt-down cover and a heat-branded "FV" inscription on the lid, set flush with the finish grade. The valve box rests on two common brick supports over eight inches of three-quarter-inch crushed rock. Inside the box, a Netafim line flushing valve connects via a one-half-inch polyvinyl chloride schedule eighty nipple of required length to a polyvinyl chloride solvent-weld by threaded ninety-degree elbow. This elbow transitions to a polyvinyl chloride pipe leading to the exhaust header.
1. ROUND VALVE BOX W/BOLT-DOWN COVER. HEAT BRAND "FV" ON VALVE BOX LID IN 2" HIGH CHARACTERS. 2. FINISH GRADE. 3. NETAFIM LINE FLUSHING VALVE TL050MFV-1. 4. 1/2" PVC SCHEDULE 80 NIPPLE - LENGTH AS REQUIRED. 5. PVC S X T 90° ELL - SIZE AS REQUIRED. 6. PVC PIPE TO EXHAUST HEADER. 7. COMMON BRICK - (2 REQUIRED). 8. 3/4" CRUSHED ROCK - 8" DEPTH. 1" LEGEND 1 2 3 4 5 6 7 8
