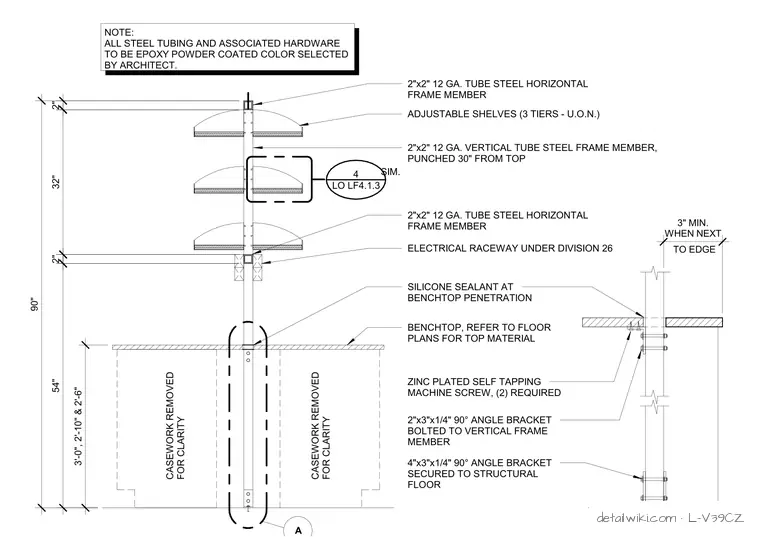

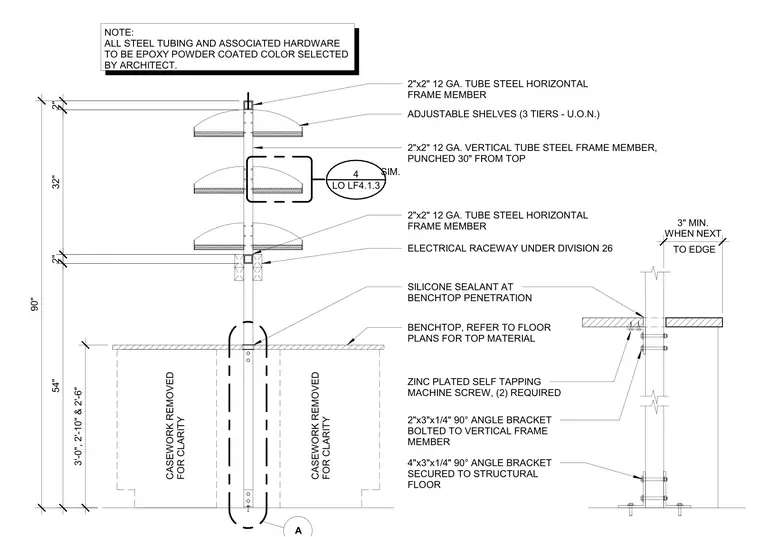

An adjustable three-tier island shelving unit is supported by a vertical two-inch by two-inch twelve-gauge hollow structural section steel tube frame member. The vertical frame member is secured to the structural floor using a four-inch by three-inch by one-quarter-inch ninety-degree angle bracket at the base and a two-inch by three-inch by one-quarter-inch angle bracket connected with zinc-plated self-tapping machine screws. The assembly features two-inch by two-inch twelve-gauge horizontal frame members supporting three tiers of adjustable shelves with silicone sealant at the benchtop penetration. All steel tubing and associated hardware receive an epoxy powder coating in a color selected by the architect, and an electrical raceway is integrated under Division 26.
2"x2" 12 GA. TUBE STEEL HORIZONTAL FRAME MEMBER ELECTRICAL RACEWAY UNDER DIVISION 26 2"x2" 12 GA. VERTICAL TUBE STEEL FRAME MEMBER, PUNCHED 30" FROM TOP SILICONE SEALANT AT BENCHTOP PENETRATION BENCHTOP, REFER TO FLOOR PLANS FOR TOP MATERIAL 2"x2" 12 GA. TUBE STEEL HORIZONTAL FRAME MEMBER ZINC PLATED SELF TAPPING MACHINE SCREW, (2) REQUIRED NOTE: ALL STEEL TUBING AND ASSOCIATED HARDWARE TO BE EPOXY POWDER COATED COLOR SELECTED BY ARCHITECT. 2"x3"x1/4" 90° ANGLE BRACKET BOLTED TO VERTICAL FRAME MEMBER 4"x3"x1/4" 90° ANGLE BRACKET SECURED TO STRUCTURAL FLOOR LO LF4.1.3 4 A CASEWORK REMOVED FOR CLARITY CASEWORK REMOVED FOR CLARITY 54" 2" 3'-0", 2'-10" & 2'-6" 32" 2" 90" TO EDGE 3" MIN. WHEN NEXT ADJUSTABLE SHELVES (3 TIERS - U.O.N.) SIM.
