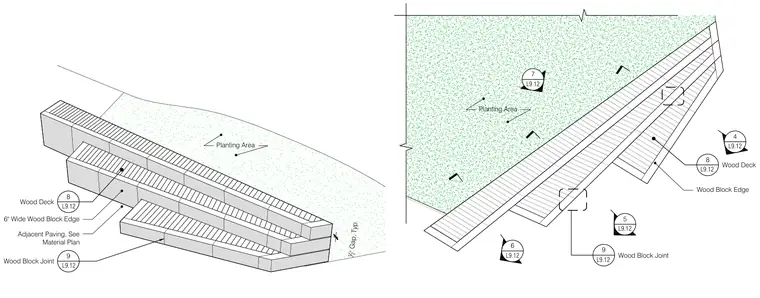

A wood deck terminates at a wood block edge alongside a planting area and adjacent paving. The assembly features a six-inch wide wood block edge bounding the wood deck surfaces. Wood block joints are detailed with a typical one-half inch gap. Adjacent paving is sized per the material plan. The wood block edge retains the planting area soils.
4 L9.12 5 L9.12 6 L9.12 7 L9.12 Wood Block Edge Planting Area 8 L9.12 Wood Deck 9 L9.12 Wood Block Joint 6" Wide Wood Block Edge Planting Area Adjacent Paving, See Material Plan 8 L9.12 Wood Deck 9 L9.12 Wood Block Joint 12 " Gap, Typ.
