Recessed Wall Light Installation Detail

Elements

About this detail

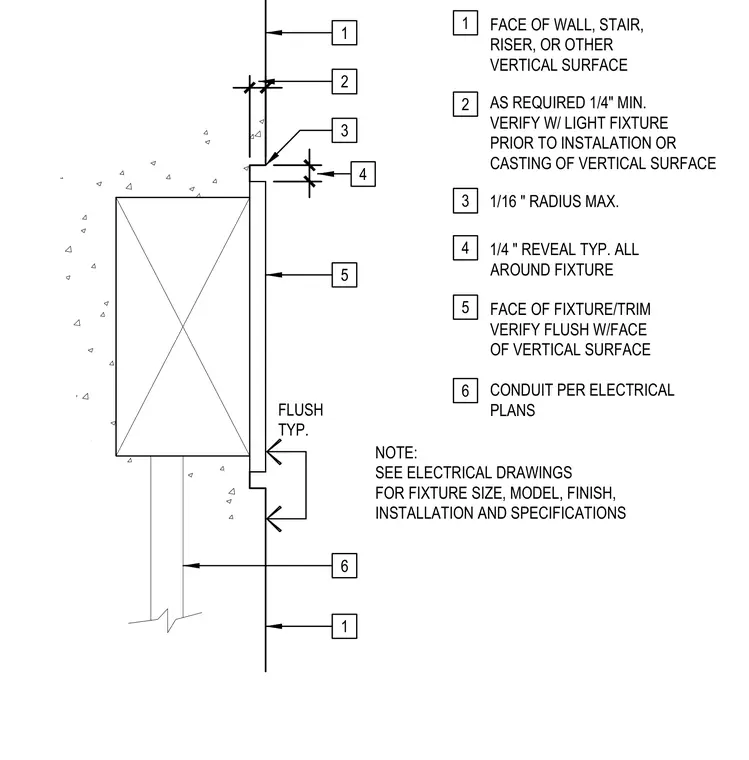

A recessed light fixture is installed flush within a vertical concrete wall, stair riser, or similar surface. The trim aligns flush with the face of the vertical surface, incorporating a typical one-quarter inch reveal all around the fixture with a maximum one-sixteenth inch radius. Electrical conduit routing is coordinated per the electrical plans, and fixture dimensions, model, finish, and installation specifications are verified prior to casting or installation.
