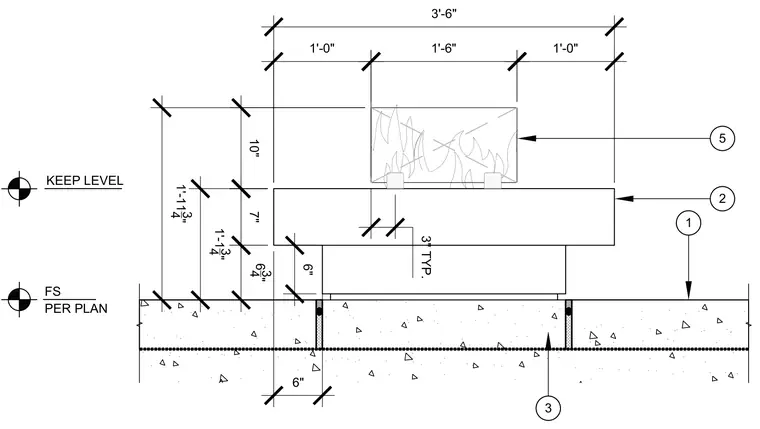

A fire pit assembly is anchored to a reinforced concrete slab sub-base per plan. The main fire pit structure sits above the concrete with specified vertical clearances and dimensional set-outs. The overall assembly maintains level alignment with designated finish grades.
63 4" 7" 10" 6" 6" 1'-0" 1'-13 4" 1'-113 4" 3'-6" 3" TYP. 1'-6" 1'-0" FS PER PLAN KEEP LEVEL 5 2 1 3
