Landscape · L-TZ8EB

Sculpture Base Drainage and Paving Detail

Materials

Elements

Floors / Slabs Waterproofing / Flashing Insulation Site / Paving

About this detail

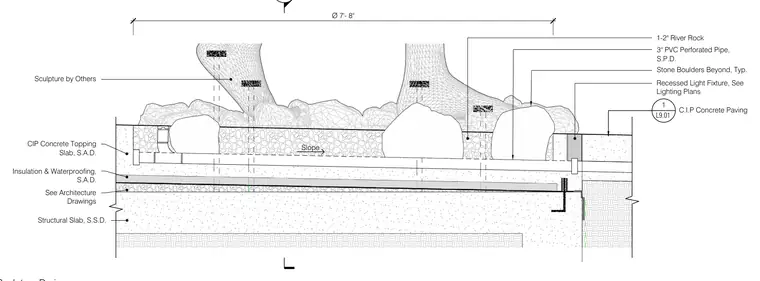

Drainage and paving buildup for a sculpture supported on a cast-in-place concrete structural slab. The assembly features a structural concrete slab supporting an insulation and waterproofing layer, topped with a sloped cast-in-place concrete topping slab. A three-inch PVC perforated pipe collects subsurface water within a layer of one- to two-inch river rock surrounding stone boulders. A recessed light fixture is integrated into the adjacent cast-in-place concrete paving.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
