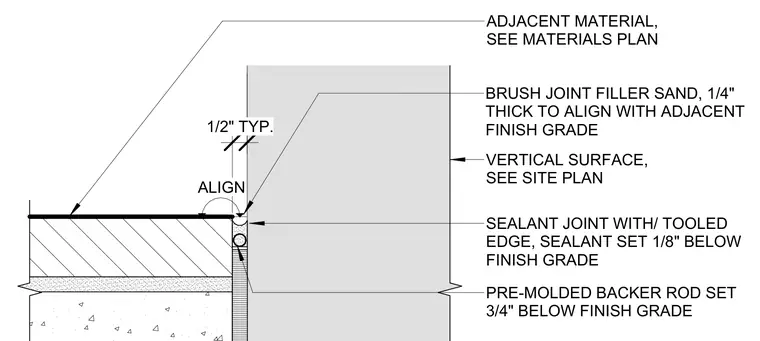

An expansion joint assembly features a pre-molded backer rod set three-quarters of an inch below the finish grade, topped with a sealant joint with a tooled edge set one-eighth of an inch below the finish grade. A one-quarter-inch thick layer of brush joint filler sand aligns with the adjacent finish grade. The joint interfaces with a vertical surface sized per the site plan and aligns with adjacent material per the materials plan.
BRUSH JOINT FILLER SAND, 1/4" THICK TO ALIGN WITH ADJACENT FINISH GRADE SEALANT JOINT WITH/ TOOLED EDGE, SEALANT SET 1/8" BELOW FINISH GRADE PRE-MOLDED BACKER ROD SET 3/4" BELOW FINISH GRADE 1/2" TYP. VERTICAL SURFACE, SEE SITE PLAN ALIGN ADJACENT MATERIAL, SEE MATERIALS PLAN
