Remote Control Valve Planting Area Details

Elements

About this detail

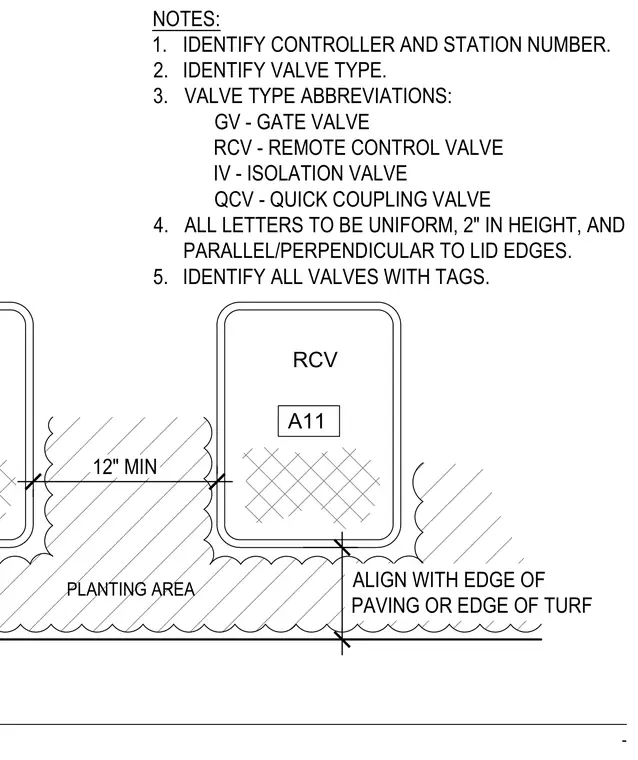

Remote control valve boxes are positioned within or adjacent to planting areas with specific alignment requirements. Valve box lids require identification lettering of uniform height aligned parallel or perpendicular to the lid edges. A minimum twelve-inch clearance is maintained from edges, and valve boxes align with the edge of paving or turf. Valve types including gate valves, remote control valves, isolation valves, and quick coupling valves are identified with tags and controller station numbers.
