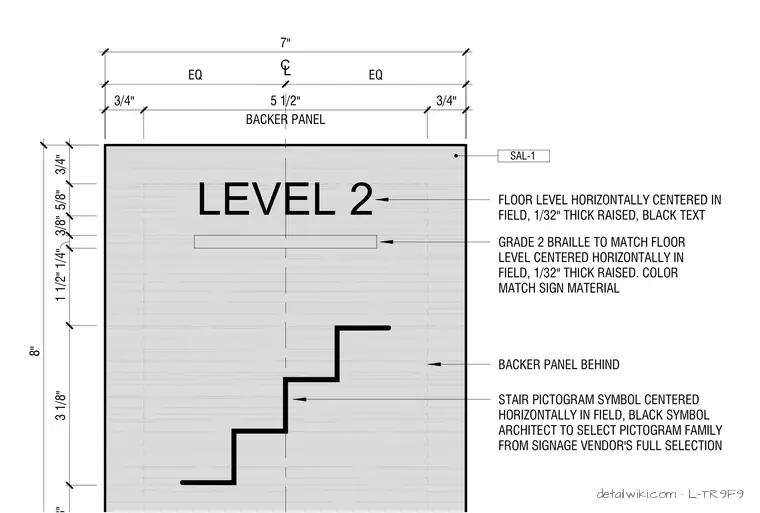

The sign measures seven inches wide by eight inches high overall with a three-quarter-inch margin on each side of the five-and-a-half-inch backer panel. The black floor level text is one-thirty-second-inch thick raised lettering centered horizontally in the field. Grade two braille matching the floor level is positioned below the text and centered horizontally in the field as one-thirty-second-inch thick raised characters. A stair pictogram symbol is centered horizontally in the lower portion of the field with a black symbol specified by the architect from the signage vendor selection. The backer panel finish material is designated as SAL-1.
8" 3/4" 5/8" 3/8" 1/4" 1 1/2" 3 1/8" STAIR PICTOGRAM SYMBOL CENTERED HORIZONTALLY IN FIELD, BLACK SYMBOL ARCHITECT TO SELECT PICTOGRAM FAMILY FROM SIGNAGE VENDOR'S FULL SELECTION EQ EQ CL 3/4" BACKER PANEL 5 1/2" 3/4" 7" LEVEL 2 FLOOR LEVEL HORIZONTALLY CENTERED IN FIELD, 1/32" THICK RAISED, BLACK TEXT GRADE 2 BRAILLE TO MATCH FLOOR LEVEL CENTERED HORIZONTALLY IN FIELD, 1/32" THICK RAISED. COLOR MATCH SIGN MATERIAL SAL-1 BACKER PANEL BEHIND
