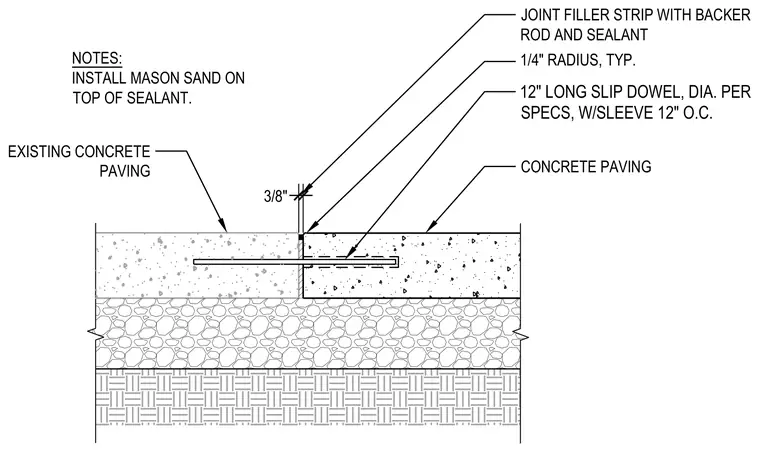

New concrete paving meets existing concrete paving at a dowelled construction joint featuring a twelve-inch long slip dowel with a sleeve spaced twelve inches on center. The joint gap is filled with a joint filler strip, backer rod, and sealant with a three-eighths inch dimension, finished with a typical one-quarter inch radius. Mason sand is installed on top of the sealant per the installation note.
3/8" NOTES: INSTALL MASON SAND ON TOP OF SEALANT. JOINT FILLER STRIP WITH BACKER ROD AND SEALANT 1/4" RADIUS, TYP. 12" LONG SLIP DOWEL, DIA. PER SPECS, W/SLEEVE 12" O.C. CONCRETE PAVING EXISTING CONCRETE PAVING
