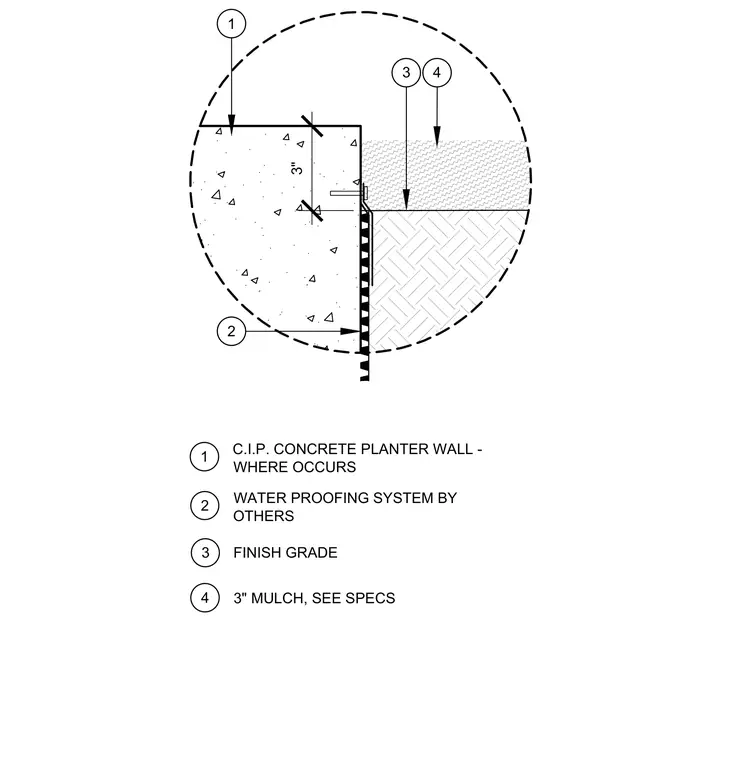

A cast-in-place concrete planter wall receives a waterproofing system applied by others along the exterior face. The exterior finish grade transitions to a three-inch layer of mulch detailed per specifications.
2 WATER PROOFING SYSTEM BY OTHERS 1 C.I.P. CONCRETE PLANTER WALL - WHERE OCCURS 3 FINISH GRADE 4 3" MULCH, SEE SPECS 1 2 3 4 3"
