Landscape · L-TKCX2

Chainlink Fence Connections

Elements

Columns Trusses Bracing Connections / Plates Reinforcing

Connections

About this detail

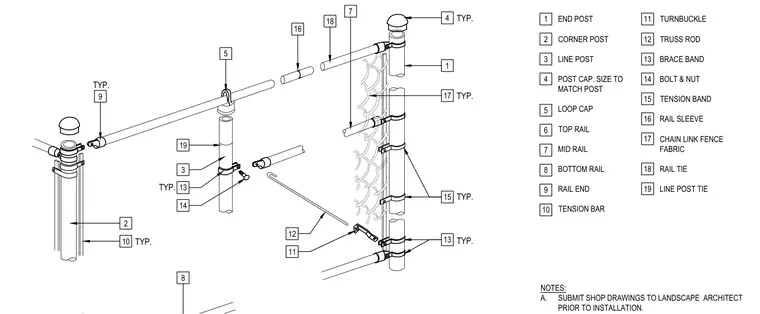

An exploded three-dimensional assembly presents the components of a chainlink fence including end posts, corner posts, and line posts fitted with matching post caps, loop caps, and rail ends. Tubular top, mid, and bottom rails connect using rail sleeves and are secured with rail ties and line post ties. Chainlink fence fabric fastens to the posts using tension bars, tension bands, and brace bands secured with bolts and nuts. Truss rods and turnbuckles provide diagonal bracing tied back to the posts.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
