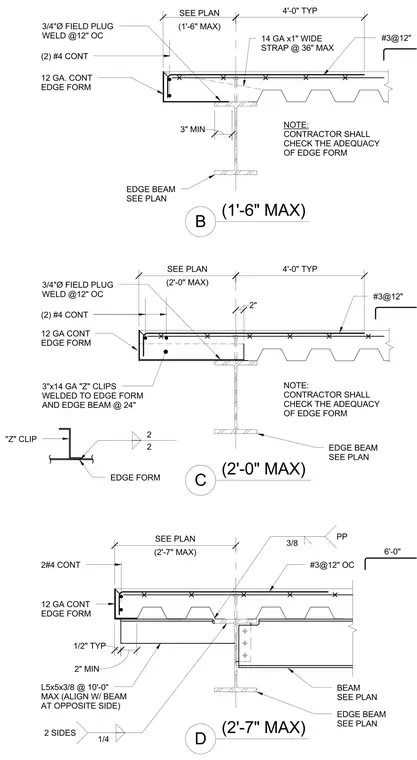

Three conditions for a concrete slab on metal deck terminating at a perimeter edge beam. Each condition incorporates a continuous twelve-gauge metal edge form secured with three-quarter-inch diameter field plug welds spaced at twelve inches on center. Continuous number four reinforcing bars run parallel to the edge, supplemented by transverse number three bars spaced at twelve inches on center. The first condition utilizes a one-inch wide fourteen-gauge strap at thirty-six inches maximum spacing. The second condition introduces three-inch by fourteen-gauge Z-clips welded to both the edge form and the edge beam at twenty-four inches on center. The third condition features an angle section connected to the supporting beam with fillet welds and field plug welds.
(1'-6" MAX) B #3@12" 12 GA. CONT EDGE FORM NOTE: CONTRACTOR SHALL CHECK THE ADEQUACY OF EDGE FORM 14 GA x1" WIDE STRAP @ 36" MAX (1'-6" MAX) SEE PLAN (2'-7" MAX) D 6'-0" 2#4 CONT L5x5x3/8 @ 10'-0" MAX (ALIGN W/ BEAM AT OPPOSITE SIDE) 12 GA CONT EDGE FORM EDGE BEAM SEE PLAN BEAM SEE PLAN #3@12" OC (2'-7" MAX) SEE PLAN (2'-0" MAX) C #3@12" 3"x14 GA "Z" CLIPS WELDED TO EDGE FORM AND EDGE BEAM @ 24" "Z" CLIP NOTE: CONTRACTOR SHALL CHECK THE ADEQUACY OF EDGE FORM EDGE BEAM SEE PLAN EDGE FORM (2) #4 CONT 12 GA CONT EDGE FORM 3/4"Ø FIELD PLUG WELD @12" OC 4'-0" TYP (2'-0" MAX) SEE PLAN 3/8 PP 1/2" TYP EDGE BEAM SEE PLAN 4'-0" TYP 3" MIN 2 2 1/4 2 SIDES 2" 2" MIN (2) #4 CONT 3/4"Ø FIELD PLUG WELD @12" OC
