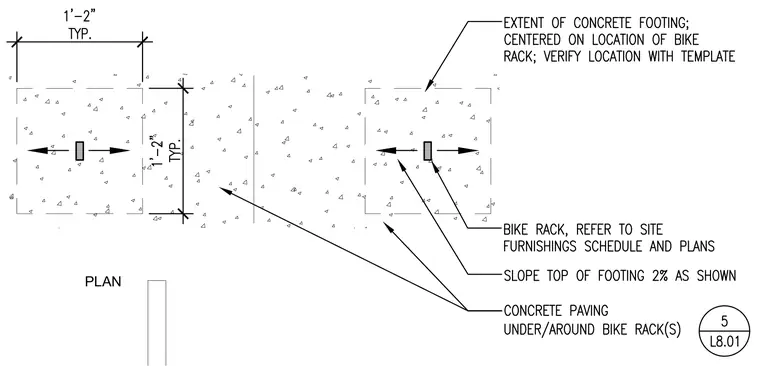

Concrete footings measuring one foot two inches square are centered on the bike rack locations with locations verified using a template. The top of the footing slopes two percent as shown. Concrete paving is placed under and around the bike racks. Bike racks are provided per the site furnishings schedule and plans.
