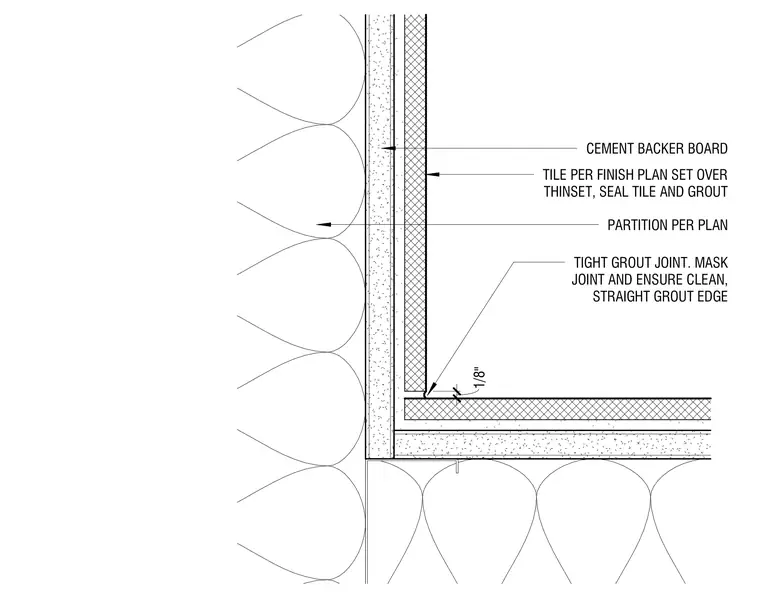

This interior wall detail shows a tile finish set over a cement backer board installed on a partition per plan. The inside corner features a tight one-eighth inch grout joint where the tile meets. The joint is masked to ensure a clean and straight grout edge. Both tile and grout are sealed after installation.
TIGHT GROUT JOINT. MASK JOINT AND ENSURE CLEAN, STRAIGHT GROUT EDGE PARTITION PER PLAN CEMENT BACKER BOARD TILE PER FINISH PLAN SET OVER THINSET, SEAL TILE AND GROUT 1/8"
