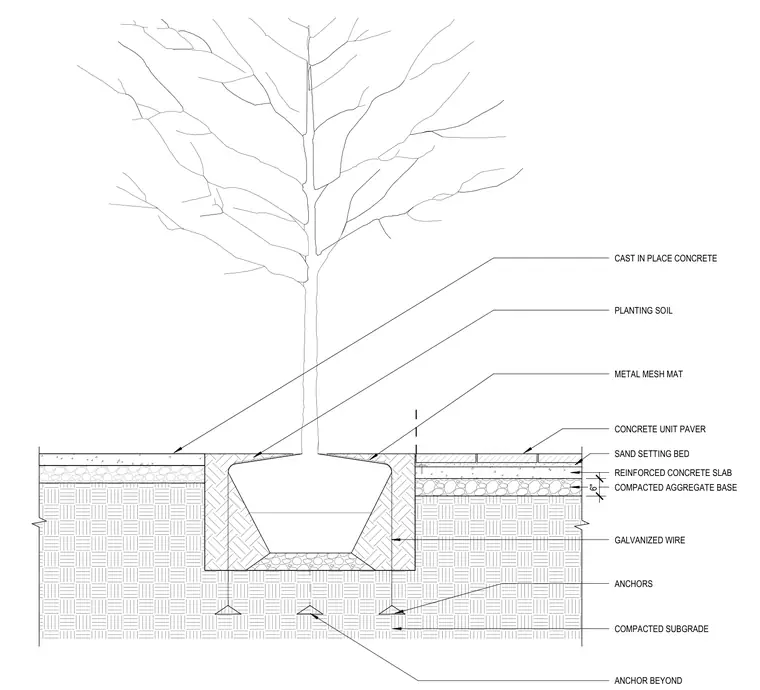

A tree rootball is set within a cast-in-place concrete planting cutout surrounded by concrete unit pavers on a sand setting bed, reinforced concrete slab, and compacted aggregate base. Galvanized wire secures the rootball and extends down to anchors set into the compacted subgrade. A metal mesh mat is integrated into the soil surface adjacent to the tree pit. The entire assembly rests on compacted subgrade layers.
ANCHOR BEYOND GALVANIZED WIRE METAL MESH MAT COMPACTED SUBGRADE ANCHORS COMPACTED AGGREGATE BASE REINFORCED CONCRETE SLAB SAND SETTING BED CONCRETE UNIT PAVER CAST IN PLACE CONCRETE PLANTING SOIL 6"
