A tree protection assembly is established around the crown dripline with high-density orange polyethylene fencing supported by two-inch by six-foot steel posts spaced at eight feet on center. Laminated plastic signs measuring eight and a half by eleven inches are attached and spaced every fifty feet along the fence. An eight to twelve-inch thick layer of mulch is placed on the maintenance road, with a five-inch thick layer applied inside the protected area while maintaining the existing grade. Protective fencing restricts equipment operation and requires approved arborists for any pruning.

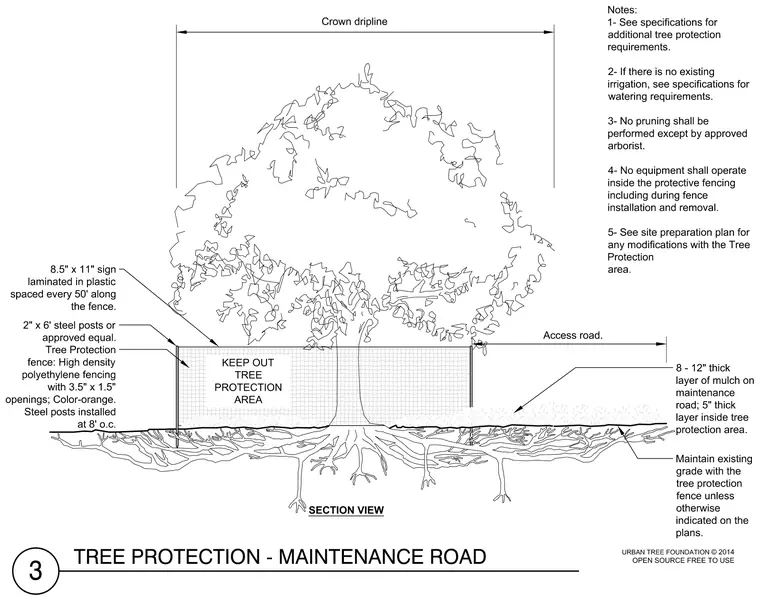

3 TREE PROTECTION - MAINTENANCE ROAD Crown dripline SECTION VIEW Maintain existing grade with the tree protection fence unless otherwise indicated on the plans. 8 - 12" thick layer of mulch on maintenance road; 5" thick layer inside tree protection area. Notes: 1- See specifications for additional tree protection requirements. 2- If there is no existing irrigation, see specifications for watering requirements. 3- No pruning shall be performed except by approved arborist. 4- No equipment shall operate inside the protective fencing including during fence installation and removal. 5- See site preparation plan for any modifications with the Tree Protection area. KEEP OUT TREE PROTECTION AREA 8.5" x 11" sign laminated in plastic spaced every 50' along the fence. Access road. 2" x 6' steel posts or approved equal. Tree Protection fence: High density polyethylene fencing with 3.5" x 1.5" openings; Color-orange. Steel posts installed at 8' o.c. URBAN TREE FOUNDATION © 2014 OPEN SOURCE FREE TO USE
