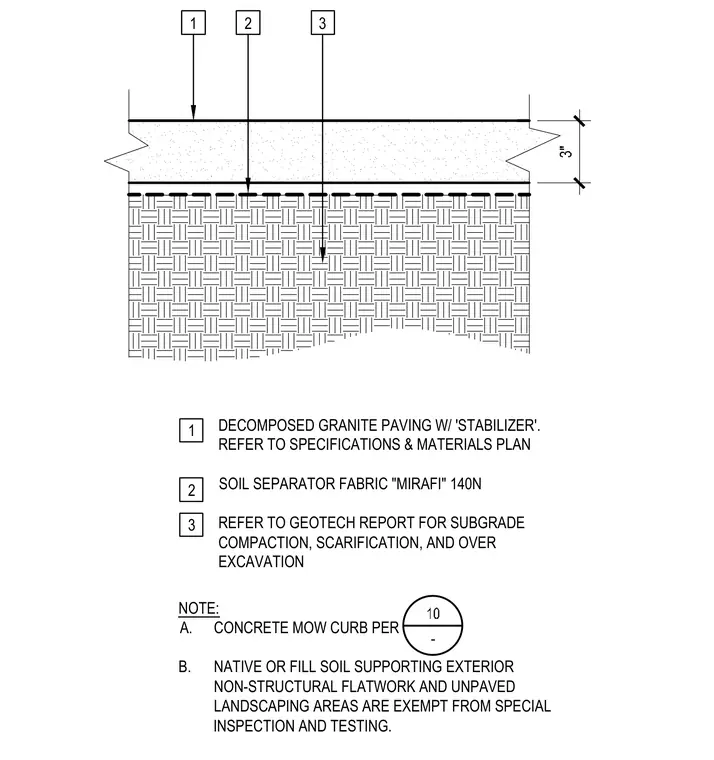

Decomposed granite paving with stabilizer is installed at a thickness of three inches over a non-woven soil separator fabric. The underlying subgrade is prepared per the geotechnical report for compaction, scarification, and over-excavation. A concrete mow curb is provided at the perimeter per project specifications.
3" 1 2 3 1 2 3 NOTE: A. CONCRETE MOW CURB PER B. NATIVE OR FILL SOIL SUPPORTING EXTERIOR NON-STRUCTURAL FLATWORK AND UNPAVED LANDSCAPING AREAS ARE EXEMPT FROM SPECIAL INSPECTION AND TESTING. 10 - DECOMPOSED GRANITE PAVING W/ 'STABILIZER'. REFER TO SPECIFICATIONS & MATERIALS PLAN SOIL SEPARATOR FABRIC "MIRAFI" 140N REFER TO GEOTECH REPORT FOR SUBGRADE COMPACTION, SCARIFICATION, AND OVER EXCAVATION
