An irrigation controller is mounted to the building wall inside a protective stainless steel enclosure positioned sixty inches above the exterior building slab. A one hundred twenty-volt alternating current non-switched power supply conduit feeds into a junction box twelve inches minimum above the slab. A two-and-one-half-inch polyvinyl chloride conduit routes control wires down the wall through a sweep elbow into direct burial lines running to the valves below finish grade.

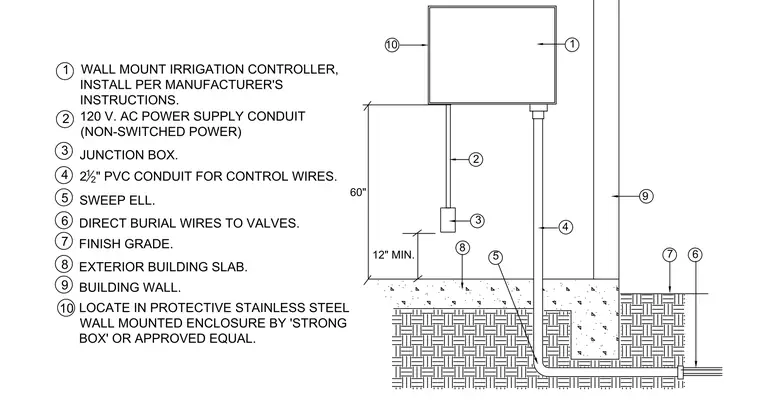

WALL MOUNT IRRIGATION CONTROLLER, INSTALL PER MANUFACTURER'S INSTRUCTIONS. 1 120 V. AC POWER SUPPLY CONDUIT (NON-SWITCHED POWER) 2 JUNCTION BOX. 3 2 12 " PVC CONDUIT FOR CONTROL WIRES. 4 SWEEP ELL. 5 DIRECT BURIAL WIRES TO VALVES. 6 FINISH GRADE. 7 1 10 9 6 7 4 5 2 3 8 12" MIN. 60" EXTERIOR BUILDING SLAB. 8 BUILDING WALL. 9 LOCATE IN PROTECTIVE STAINLESS STEEL WALL MOUNTED ENCLOSURE BY 'STRONG BOX' OR APPROVED EQUAL. 10
