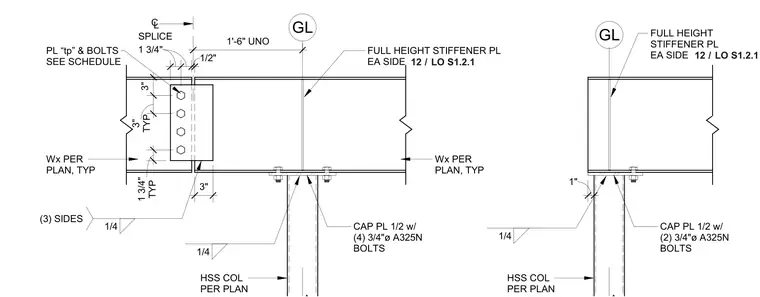

Hollow structural section columns intersect with horizontal members sized per plan, utilizing a one-half-inch cap plate secured by four three-quarter-inch diameter A325N bolts. Full-height stiffener plates are welded to each side of the column using one-quarter-inch fillet welds along three sides. A beam splice connection incorporates a plate sized per schedule with matching bolts, positioned adjacent to the column centerline with specified clearances and edge distances. Additional connection configurations feature identical cap plate assemblies with two three-quarter-inch diameter A325N bolts.
HSS COL PER PLAN CAP PL 1/2 w/ (4) 3/4"ø A325N BOLTS FULL HEIGHT STIFFENER PL EA SIDE 1/4 GL HSS COL PER PLAN CAP PL 1/2 w/ (2) 3/4"ø A325N BOLTS FULL HEIGHT STIFFENER PL EA SIDE 1/4 GL 1" 1'-6" UNO 3" TYP 3" TYP 1 3/4" Wx PER PLAN, TYP 1 3/4" 1 3/4" 1/2" SPLICE C L 1/4 (3) SIDES 3" PL “tp” & BOLTS SEE SCHEDULE Wx PER PLAN, TYP / 12 LO S1.2.1 / 12 LO S1.2.1
