Landscape · L-T799C

Terrace Irrigation Point of Connection Detail

Materials

Elements

Walls Floors / Slabs Drainage Connections / Plates

About this detail

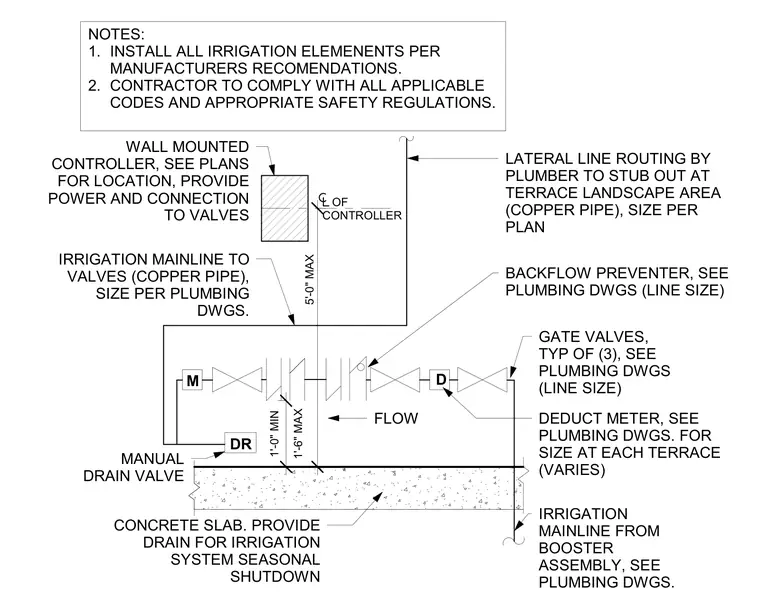

An irrigation mainline from the booster assembly feeds into the point of connection assembly supported above a concrete slab. The line incorporates three gate valves, a backflow preventer, and a deduct meter sized per plumbing drawings. A manual drain valve ties into the system over the concrete slab, which requires a drain for seasonal shutdown. A wall-mounted controller is positioned at a maximum height of five feet zero inches above the slab, with lateral copper piping routed to the terrace landscape area per plan.
