Typical Concrete Paving Section and Pavement Schedule

Materials

Elements

About this detail

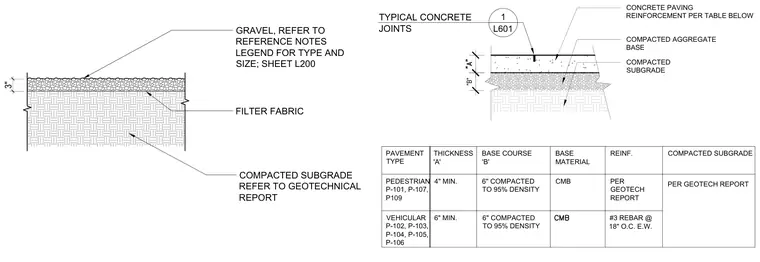

The concrete paving assembly consists of a reinforced concrete slab resting on a compacted aggregate base and compacted subgrade, with thickness and reinforcement varying by pedestrian or vehicular use as defined in the pavement schedule. Pedestrian paving requires a four-inch minimum concrete thickness and a six-inch aggregate base compacted to ninety-five percent density, while vehicular paving uses a six-inch minimum concrete thickness with #3 rebar at eighteen inches on center each way over a similar crushed miscellaneous base. A secondary detail shows a three-inch layer of gravel over filter fabric above compacted subgrade per the geotechnical report.
