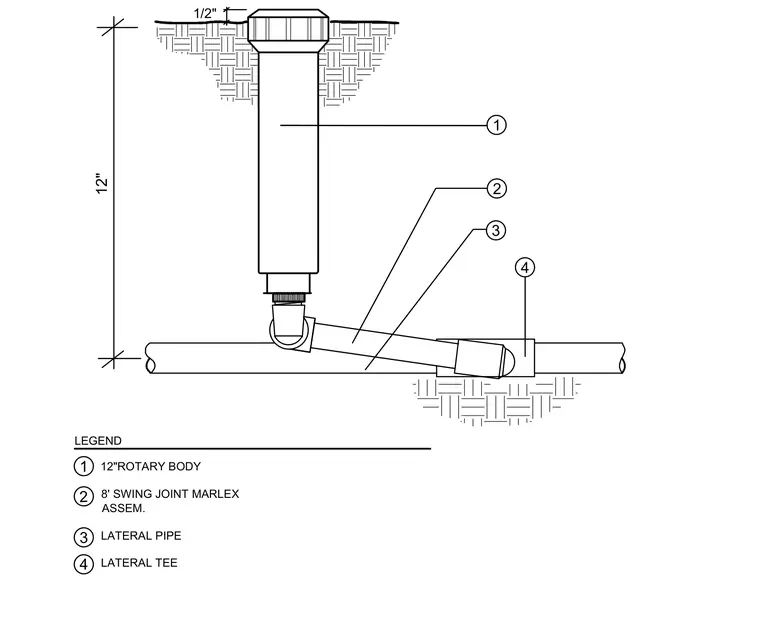

The 12-inch rotary body sits flush with the finished grade, extending twelve inches down to connect to an eight-inch Marlex swing joint assembly. The swing joint ties into the lateral pipe through a lateral tee fitting.
1/2" 12" LEGEND 12"ROTARY BODY 8' SWING JOINT MARLEX ASSEM. LATERAL PIPE LATERAL TEE 1 2 3 4 1 2 3 4
