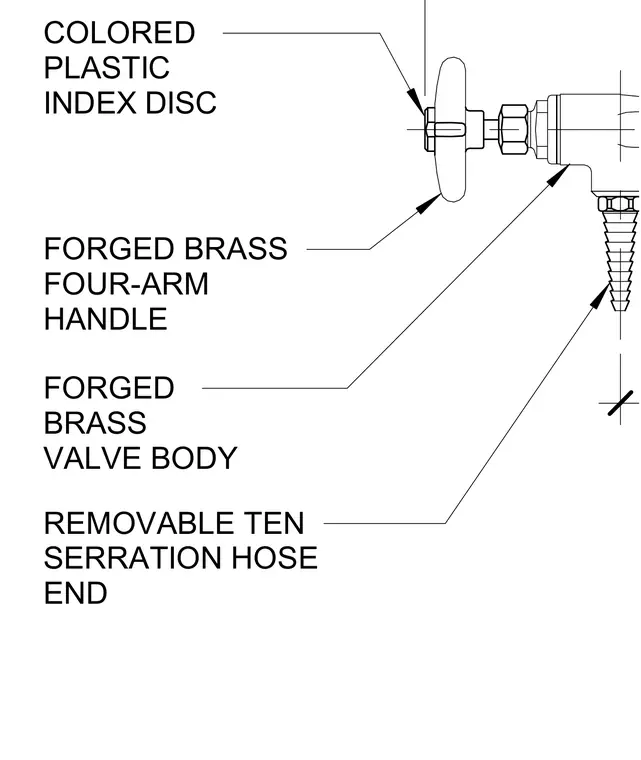

The assembly comprises a forged brass valve body with a forged brass four-arm handle operated by a colored plastic index disc. A removable ten-serration hose end connects at the base of the valve body.
REMOVABLE TEN SERRATION HOSE END COLORED PLASTIC INDEX DISC FORGED BRASS FOUR-ARM HANDLE FORGED BRASS VALVE BODY 1 7/8"
