Landscape · L-T46Q7

Remote Control Valve and Low Flow Irrigation Assembly

Materials

Elements

Waterproofing / Flashing Connections / Plates

About this detail

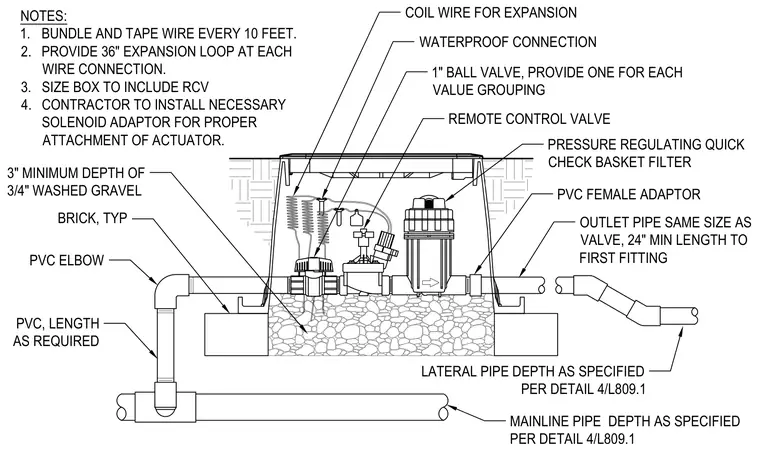

An irrigation remote control valve assembly is housed within a protective valve box resting upon a three inch minimum depth bed of three-quarter inch washed gravel over typical brick supports. The assembly connects to a mainline pipe at a specified depth and transitions through PVC elbows, PVC female adaptors, and a one inch ball valve provided for each valve grouping. A pressure regulating quick check basket filter ties into the system ahead of the remote control valve, with an outlet pipe extending at least twenty-four inches to the first fitting before connecting to lateral piping. Waterproof wire connections feature thirty-six inch expansion loops and are bundled and taped every ten feet. A contractor-installed solenoid adaptor allows proper attachment of the actuator.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
