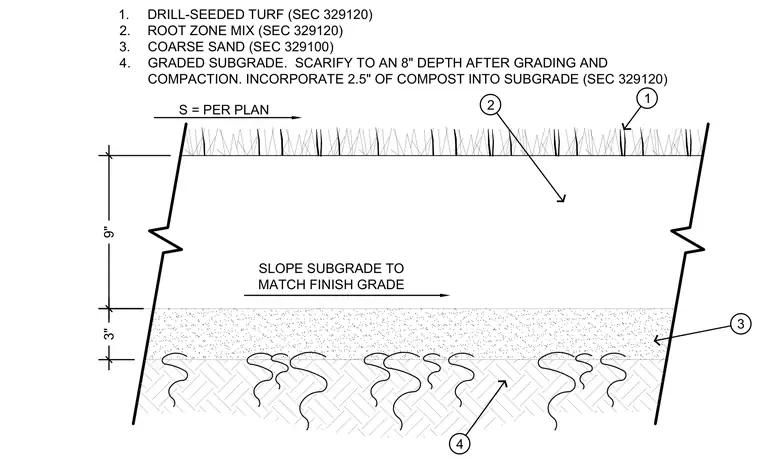

This cross-section details the multi-layer soil profile for an athletic field installation. The topmost layer features drill-seeded turf planted in a nine-inch root zone mix. Below the root zone mix lies a three-inch layer of coarse sand. The base layer consists of a graded subgrade that is scarified to an eight-inch depth after grading and compaction, with two and a half inches of compost incorporated into the subgrade. The subgrade is sloped to match the finish grade per plan.
S = PER PLAN 9" 1. DRILL-SEEDED TURF (SEC 329120) 2. ROOT ZONE MIX (SEC 329120) 3. COARSE SAND (SEC 329100) 4. GRADED SUBGRADE. SCARIFY TO AN 8" DEPTH AFTER GRADING AND COMPACTION. INCORPORATE 2.5" OF COMPOST INTO SUBGRADE (SEC 329120) 3" SLOPE SUBGRADE TO MATCH FINISH GRADE 1 2 3 4
