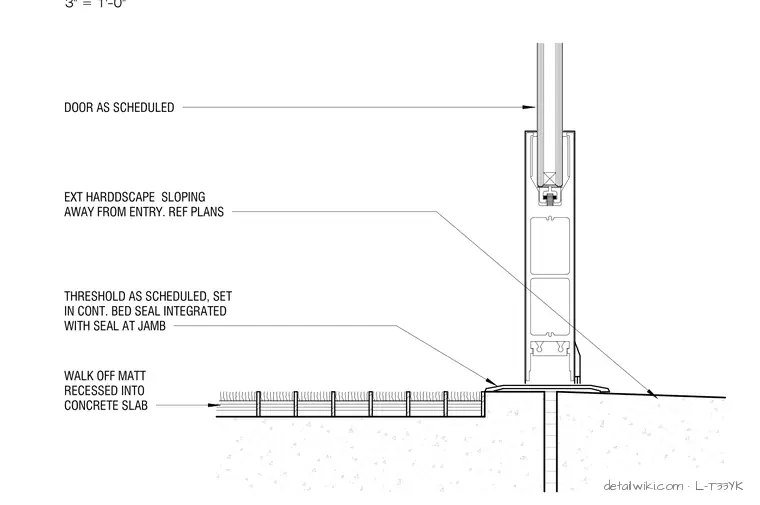

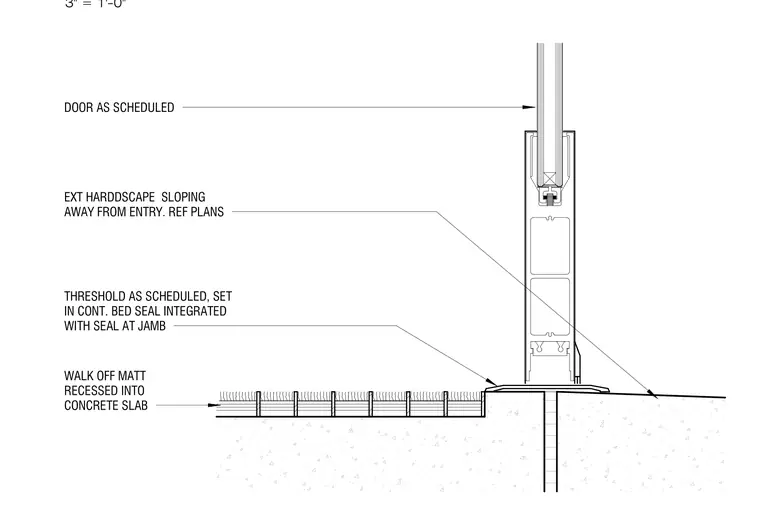

An interior walk-off mat is recessed into a concrete slab adjacent to an entry door threshold set in a continuous sealant bed integrated with the jamb seal. Exterior hardscape slopes away from the entry. The door assembly features a thermally improved aluminum frame supported by six-inch metal stud framing with batt insulation and a vapor retarder.
DOOR AS SCHEDULED EXT HARDDSCAPE SLOPING AWAY FROM ENTRY. REF PLANS THRESHOLD AS SCHEDULED, SET IN CONT. BED SEAL INTEGRATED WITH SEAL AT JAMB WALK OFF MATT RECESSED INTO CONCRETE SLAB THERMALLY IMPOROVED ALUM 6" MTL STUD FRAMING W/ BATT INSULATION AND VAPOR RETARDER AS INTERIOR WALL FINISH AS OCCURS, REFER TO ROOM 3" = 1'-0"
