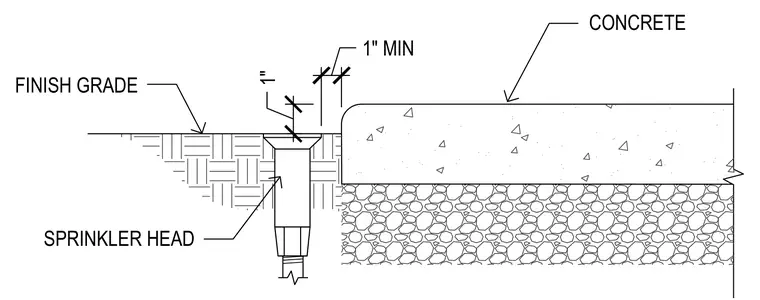

A sprinkler head is installed adjacent to a concrete slab with a finish grade set flush with the top of the sprinkler body. A minimum one-inch clearance is maintained between the sprinkler head and the edge of the concrete. The concrete slab rests on a compacted aggregate base.
