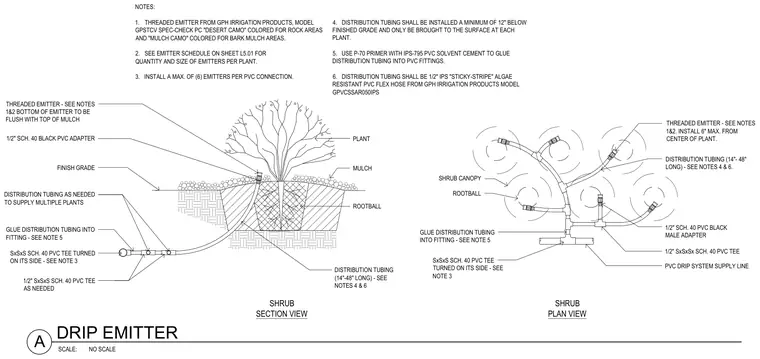

A schedule 40 PVC supply line connects to a side-turned PVC tee for shrub drip emitter installation in section and plan views. Distribution tubing feeds multiple plants via black male adapters and threaded emitters positioned flush with the top of the mulch finish grade. Tubing is installed a minimum of twelve inches below finished grade and connected using P-70 primer with IPS-795 PVC solvent cement. Maximum emitter count is limited to six per PVC connection, with distribution tubing consisting of one-half inch IPS algae-resistant PVC flex hose.
SHRUB PLAN VIEW THREADED EMITTER - SEE NOTES 1&2 BOTTOM OF EMITTER TO BE FLUSH WITH TOP OF MULCH FINISH GRADE SxSxS SCH. 40 PVC TEE TURNED ON ITS SIDE - SEE NOTE 3 PLANT MULCH ROOTBALL PVC DRIP SYSTEM SUPPLY LINE SHRUB CANOPY ROOTBALL SCALE: DRIP EMITTER NO SCALE SHRUB SECTION VIEW DISTRIBUTION TUBING (14"-48" LONG) - SEE NOTES 4 & 6 1/2" SCH. 40 BLACK PVC ADAPTER DISTRIBUTION TUBING AS NEEDED TO SUPPLY MULTIPLE PLANTS GLUE DISTRIBUTION TUBING INTO FITTING - SEE NOTE 5 1/2" SxSxS SCH. 40 PVC TEE AS NEEDED GLUE DISTRIBUTION TUBING INTO FITTING - SEE NOTE 5 SxSxS SCH. 40 PVC TEE TURNED ON ITS SIDE - SEE NOTE 3 1/2" SCH. 40 PVC BLACK MALE ADAPTER 1/2" SxSxSx SCH. 40 PVC TEE THREADED EMITTER - SEE NOTES 1&2. INSTALL 6" MAX. FROM CENTER OF PLANT. DISTRIBUTION TUBING (14"- 48" LONG) - SEE NOTES 4 & 6. NOTES: 1. THREADED EMITTER FROM GPH IRRIGATION PRODUCTS, MODEL GPSTCV SPEC-CHECK PC "DESERT CAMO" COLORED FOR ROCK AREAS AND "MULCH CAMO" COLORED FOR BARK MULCH AREAS. 2. SEE EMITTER SCHEDULE ON SHEET L5.01 FOR QUANTITY AND SIZE OF EMITTERS PER PLANT. 3. INSTALL A MAX. OF (6) EMITTERS PER PVC CONNECTION. 4. DISTRIBUTION TUBING SHALL BE INSTALLED A MINIMUM OF 12" BELOW FINISHED GRADE AND ONLY BE BROUGHT TO THE SURFACE AT EACH PLANT. 5. USE P-70 PRIMER WITH IPS-795 PVC SOLVENT CEMENT TO GLUE DISTRIBUTION TUBING INTO PVC FITTINGS. 6. DISTRIBUTION TUBING SHALL BE 1/2" IPS "STICKY-STRIPE" ALGAE RESISTANT PVC FLEX HOSE FROM GPH IRRIGATION PRODUCTS MODEL GPVCSSAR050IPS A
