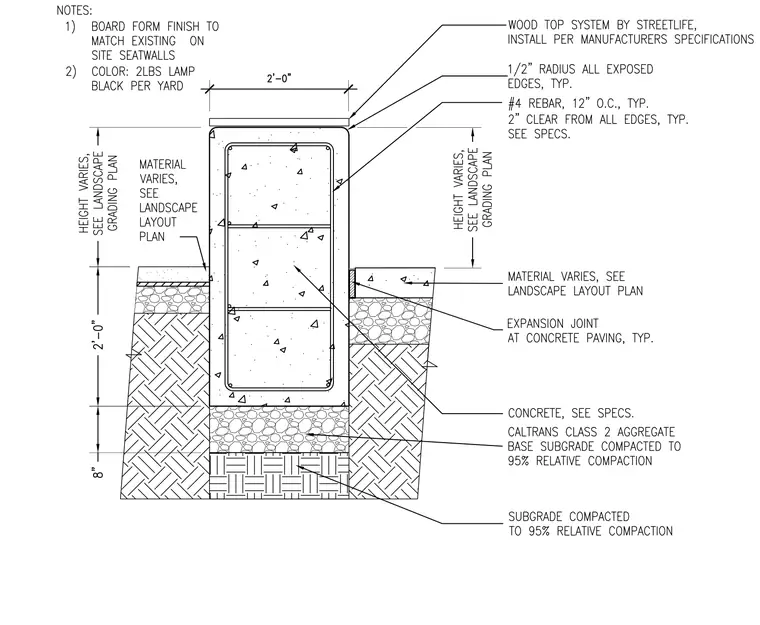

A concrete seat wall features a wood top system by Streetlife installed per manufacturer specifications. The concrete core is reinforced with number four rebar at twelve inches on center typically, maintaining two inches of clear cover from all edges. The wall rests on a compacted Caltrans Class 2 aggregate base subgrade over a compacted subgrade. Exposed concrete edges include a one-half-inch radius typically. Expansion joints are provided at concrete paving, and surrounding materials vary per the landscape layout plan.
